MSC's eCommerce platform initially launched on IBM's WebSphere Commerce product hosted on rented hardware in an IBM datacenter. In 2020, a project started to migrate the eCommerce platform from this "on-prem" setup to a software platform developed in-house and hosted on Google Cloud Platform (GCP).

My role in this migration and rearchitecting as a DevSecOps Engineer is to design and manage the infrastructure for the new GCP-hosted platform. This includes development, testing, and production environments, as well as CI/CD pipelines on Jenkins servers to perform SonarQube static code analysis and active unit testing to ensure code quality and functionality. Additionally, JFrog Artifactory and Xray were recently introduced to the CI/CD process to ensure the security of the platform's software supply chain.

Over the course of the project, I have created and currently manage traditional virtual machines (VMs), serverless applications on Cloud Run, complex NGINX and GCP-native load balancing configurations, Cloud SQL PostgreSQL databases, and Redis caches. This includes all the IAM permissions associated with these resources - ensuring the principle of least privilege access is followed.

All resources are managed with Terraform to ensure consistency in configuration across environments and to track changes through code review in Bitbucket. Terraform modules and remote state references are heavily used to reduce the length of individual configuration files. This minimizes the complexity of most changes, such as adding/removing VMs.

Condensing the Terraform scripts with modules still allows a great deal of customization - what we refer to as many "degrees of control" when it comes to changing the shape of an environment. We can scale up the number of VMs in a specific region or zone, while other regions/zones are not impacted. Or change the amount of VMs used to run a specific type of application, while others are not impacted. All this is done through the same variables.tf file to reduce the number of places Terraform is run from (while keeping environments like development and production separate).

This was a complex change to introduce to our CI/CD pipeline for several reasons.

To start, it required changes to many Java pom.xml files as Nexus is less strict about enforcing Maven standards compared to JFrog, which allowed our developers to adopt not-great habits (like "latest" versioning instead of explicit versioning).

Additionally, many Jenkins pipelines needed to be updated to push artifacts to both JFrog and Nexus while developers finished onboarding. Directly switching to JFrog would've blocked developers who haven't been onboarded from completing their sprint work and potentially put deadlines at risk.

Lastly, we needed to get 100+ MSC associates and consultants onboarded, which involved logging into JFrog and updating their workstation to push to/pull from JFrog Artifactory instead of Sonatype Nexus. This was the most time-consuming part of the project as it can be difficult to onboard such a large group of developers to a new system in a timely manner - due to competing priorities, vacation/sick time, etc.

In 2023, MSC started development of an in-house search engine named "Product Discovery". This search engine leverages Elasticsearch to store relevant information from our product catalog to improve search results compared to the previous third-party search engine.

While our initial approach to running an Elasticsearch cluster in GCP was to host it in Google Kubernetes Engine (GKE), organizational, compliance, and security concerns led us to adopt a traditional VM-based model, with plans to move to GKE in the future.

The cluster setup was standard - 3 master nodes, 3 data nodes, and 1 server running Kibana for cluster monitoring and management. A GCP HTTPS load balancer was needed to distribute requests between the data nodes. Lastly, the configuration files on all servers needed to be automatically generated to ensure the Elastic application (running on the nodes as Docker containers) was configured properly.

One additional complication to our setup was the requirement that these VMs could be rebuilt on a monthly basis. We do this due to security requirements to reset all our GCP VMs to a standardized Debian OS image. This image is recreated monthly with the latest OS patches and security fixes. Forcing all VMs to be rebuilt with the latest image brings additional security benefits, such as potentially eliminating malware that might be present on VM boot disks.

Terraform scripts are used extensively to manage these VMs. Through setting simple variables, such as the number of master and data nodes the cluster needs, the Terraform scripts handle the following:

• Create all necessary VMs using a standard naming scheme and predefined machine type.

• Apply a startup script to all VMs that automatically creates configuration files for the Elastic application.

• Dynamically fill in the hostnames of other VMs in the cluster in those configuration files. This is necessary to ensure the master nodes can communicate with each other, and that the data nodes can communicate with the master nodes.

• Create all necessary load balancing resources to distribute requests to data nodes and Kibana.

Titan was an admin panel that staff members could use to aid them with their tasks. There were a number of built-in features such as Player Lookup, Chat History, Moderation Logs, and more. It was also used as a central place to communicate updates to our team of over 100 volunteer staff members.

Powering Titan was the Internal API - a TypeScript application using the Express framework that served as the central API for the Minecraft network. All of Titan's requests for user data, chat history, moderation logs, player statistics, admin authentication, and more were handled by this API.

The code is currently not maintained, so it is likely using software libraries that currently have security issues. However, at the time we took great care to ensure the software was secure, that all of the API endpoints handled data properly, and it didn't respond with more data than required - for both successful and errored responses.

This was critical since this API was available on the public internet. The Minecraft network didn't have the resources to require staff members to access Titan through a VPN, which meant both applications would be susceptible to attacks. We used Cloudflare as a Web Application Firewall and a layer of defense from DDoS attacks. Beyond that, we ensured all endpoints required authentication, that passwords were hashed with secure cryptographic algorithms, and that user sessions expired after a reasonable amount of time.

Other consumers of the Internal API include our Discord server and the Minecraft servers. The API replaced a legacy Discord bot and facilitated user validation. Users needed to link their Minecraft account with their Discord account before they could chat in our Discord server. This reduced the amount of spam the server received. The Minecraft servers also used the API to log player chat messages in a MongoDB database. The network had anywhere from 10-20 servers running different software on them, so having the API be the central application logging chat messages to MongoDB allowed us to standardize the document format and easily make changes if necessary.

The full source code for the Titan and Internal-API projects are available on GitHub.

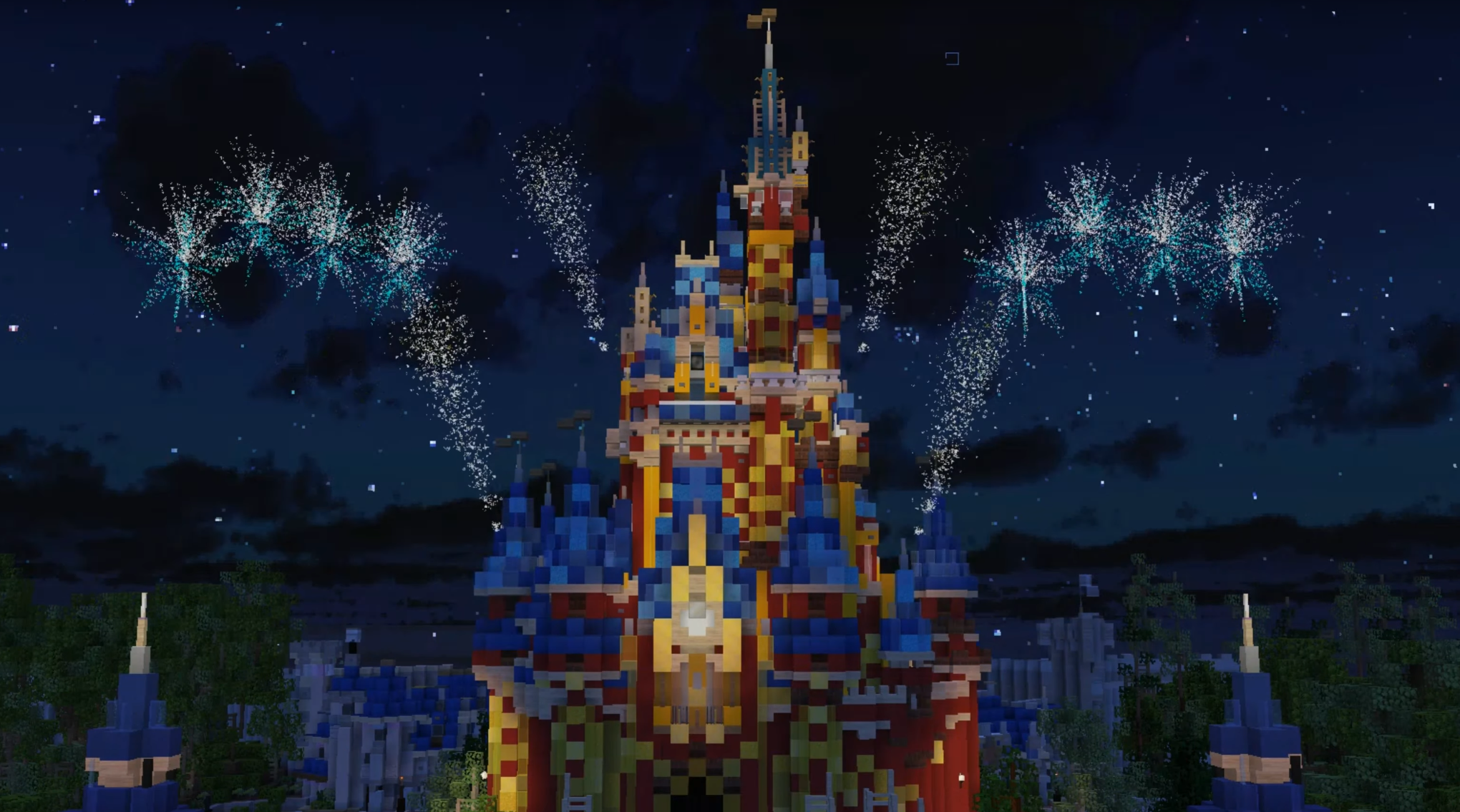

The most popular area of the Minecraft server was the interactive recreation of Walt Disney World that we had built. Later on this expaned to include Disneyland and Universal Orlando. All of these theme parks had functioning rides, sound effects, and audio tracks. One of the most fascinating aspects of the theme parks, however, were the recreations of the firework shows from the real parks.

In the early days of the server, we only had one show - Wishes - which was manually run by staff members who would fly around invisible and launch fireworks at random intervals. In 2013, the server got its first show plugin which allowed us to code shows in specially formatted text files that contained the instructions for the show. The plugin was simple, but the ability to repeat tasks at consistent times was groundbreaking for us!

Later on, I recreated that plugin and expanded on its capabilities. Rather than being limited to simple actions like sending chat messages, launching fireworks and placing blocks, the plugin could also create fountains of colored water, animatronics that moved on set paths, paste in "schematics" or prebuilt sets into the world, and launch a wider variety of fireworks. This allowed the show team to expand beyond just the Wishes firework show to stage shows as well. The Show plugin was even used to animate sequences in rides to make those more immersive as well.

As I mentioned earlier, the instructions for the shows were written in specially formatted text files. This was done by a talented team of Show Techs, not myself. However, I worked with them to add new features to the system and ensure the format of the show files worked for them. Some show files were over one million lines long due to complex scene changes requiring many Block instructions (changing a Block in the game from one type to another, like changing colors). You can see a snippet from this show file below.

The full source code for the Show project, as well as the Show files, are available on GitHub.

Dashboard was a standalone Java application and websocket server that acted as the center of the network for several years. Minecraft is not designed out of the box to scale to support hundreds of connected players. To account for this, various projects have stepped in to solve that problem with smart TCP proxies that connect multiple Minecraft servers together (see BungeeCord and Waterfall). These proxies allow players to maintain a long-running TCP connection with one central service (the proxy) while the user can switch between multiple downstream services (the Minecraft servers).

To improve the user experience further, plugins can be added to these proxies to allow players on different servers to chat with each other, send direct messages, etc. However, we ran into capacity and reliability issues by only running one BungeeCord proxy. We wanted to run multiple proxies, but doing so would split the userbase further. The proxies wouldn't communicate with each other, so players on different proxies couldn't chat together, message each other, etc.

Dashboard was my proposed solution to this problem. We would have multiple BungeeCord proxies, each responsible for connecting players to the same list of 15 or so Minecraft servers. However, the proxies would forward all chat and command packets from the player to Dashboard, which would manage the cross-server communication features the network relied on.

The initial implementation of Dashboard was very successful, allowing us to have as many proxies as necessary, and as many Minecraft servers as the team wanted. Dashboard's features were then expanded to include social systems (friends lists and party chats), enable queueing for events across different Minecraft servers, integrations with external tools the moderation teams used like Slack, and much more.

The full source code for the Dashboard project is available on GitHub.

While Dashboard was key in enabling the network to scale in terms of player capacity, feature growth, and network reliability, one issue was that it was a single-point-of-failure. Because Dashboard was so central to many operations on the network, when it was offline players couldn't connect to the network, chat messages couldn't be sent, and all of the other Dashboard-specific features were unavailable.

To address those issues, I led the design and development of an updated network structure in which the Minecraft servers, BungeeCord proxies, and external services all communicate with each other through RabbitMQ message queues. This removed the single-point-of-failure issue that Dashboard introduced and allowed all these services to operate without a central system.

This was challenging to implement since Dashboard didn't just process simple transactions like chat messages. There were complex stateful systems like the party system, the queueing system and cross-server player inventories. Previously, the state for these systems was just managed through ArrayLists in Dashboard, with long-term data persisted to MongoDB.

With the decentralized design, the state for systems like these was migrated to multiple different sources. Data that was globally relevant, like all the active parties on the network, was moved to a MongoDB collection. All '/party' commands were moved to the BungeeCord proxy plugin "PalaceBungee"; the proxies communicated with each other through RabbitMQ and stored state in MongoDB.

The queue system, which enabled players from anywhere on the network to "get in line" for an event on a specific server, was split between PalaceBungee and ParkManager. Similar to parties, the state was stored in MongoDB, and both ParkManager and PalaceBungee interacted with that state.

Cross-server inventory management, which allowed players to have the same inventory across multiple Minecraft servers, was fully migrated to the ParkManager plugin (which ran on those servers which shared inventories). The servers communicated directly with each other through RabbitMQ and used MongoDB for storing inventory data.

The full source code for the PalaceBungee and ParkManager projects are available on GitHub.
